CBN CAM Shaft Grinder

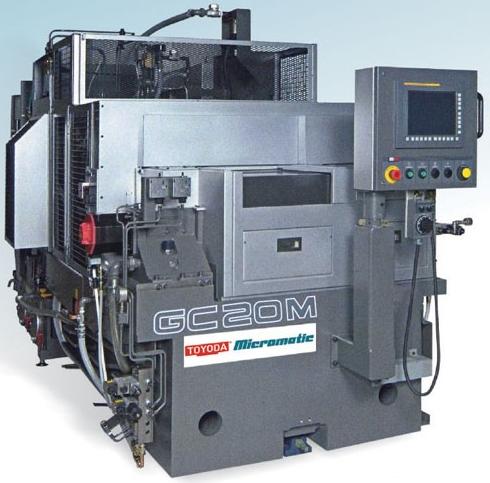

GC 20m

Designed with Toyoda

GC 20M - 25S

This compact machine is specially designed for producing cam profiles of small engine components such as 2 wheeler camshafts and for general purpose unround applications. It incorporates the latest technology for ensuring high precision and enhanced productivity.



Specifications GC20M-25

Swing over table

 Ø200 mm

Distance between centers

 250 mm

Grinding diameter

 Ø10 ~ Ø200mm

CBN wheel

 Ø350

Max. wheel surface speed

 120m/s

Wheel spindle motor

 15kw

More
Valve Seat Grinding Machines

Valve Seat Grinder - CNC

  • Machine is with Flat wheel which enables greater wheel life

  • Box Cycle to utilize different wheel area for roughing and finishing of valve

  • Pick&Place type auto loading

  • Pneumatic ejector for unloading of valve

  • Pusher support with rotary head during rough grinding

  • Servo motor for work head

  • Feature of grinding wheel retract during power failure

  • Timing belt for work head drive

More

CNC Valve Seat Grinder
