New RSS No.2
Centerless Grinder

Key Features

  • No. 2 Precision centerless grinders are extremely depandable with the highest standards & quality.

  • Hydrodynamic grinding wheel spindle supported with two sets of five shoes bearings for constant center of rotation

  • Profile truing for grinding and regulating wheel.

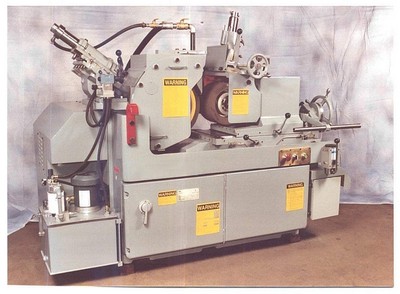

 #2 Standard Centerless Grinder


  • Sturdy swivel plate supports the double slide infeed system to facilitate fast precise taper correction without the need to retrue the wheels to achieve parallelism.

  • AC variable speed drive for regulating wheel with digital tachometer. Optionally, infinitely variable servo drive available with direct drive to spindle eliminating practically all mechanical drive components.

  • Simplified hydraulic unit with easy access for cleaning and maintenance.

  • 10" grinder supplied with outboard support for regulating wheel and 24" grinding wheel guard.

Specifications
Versión española

Capacities 8" Machine 10" Machine
Work Diameter Range
Standard workrests
Low thrufeed workrests
0.0625" to 3"
2" to 3.75"
0.0625" to 3"
2" to 3.75"
Grinding Wheel
Diameter x width (max.)
Bore
Minimum Diameter
Max. wheel surface speed
20" x 8"
12"
15"
6500 sfpm
24" x 10"
12"
17"
6500 sfpm
Regulating Wheel
Diameter x width (max.)
Bore
Minimum Diameter
Speed Range
12" x 8"
5"
9"
Infinitely variable, 12 to 300 RPM
12" x 10"
5"
9"
Infinitely variable, 12 to 300 RPM
Drive Motor
Grinding wheel
15-hp (12 kW)
25-hp (20 kW)
Coolant Equipment
Tank capacity
Pump capacity
50 gal
30 gal/min
50 gal
30 gal/min
General Information
Floor Space ( 1 x w x h)
Approximate Weight
88" x 58" x 62"
8500 lb.
88 " x 58" x 62"
9000 lb.
